5x5' Table 3/8" bolt on 2x2" pattern (1/4" plate material)

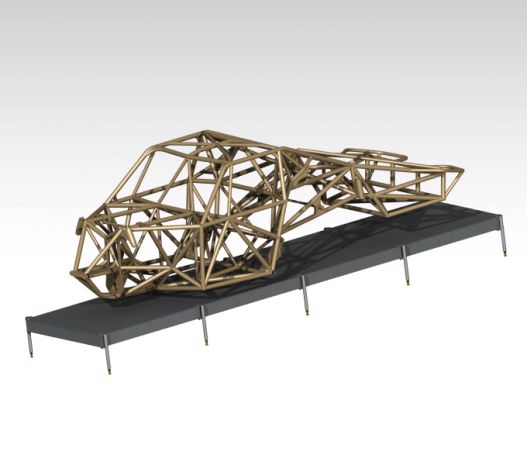

These Table sections are designed to be either used individually or bolted/welded together to make a full chassis table in 5' sections. From 10', 15', and 20' sections. These honeycomb sections are easy to build and offer a great platform to build a chassis off of.
We strongly suggest getting the legs (104-JEH-019) to complement these tables.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Frequently Asked Questions
These are the cut files for a single 5' section. You can bolt or weld multiple sections together to build out 10', 15', or 20' if you want a longer chassis table.
These are designed for 1/4" plate material, so cut them from 1/4" on your plasma, laser, or waterjet. The bolt-together pattern is the 2x2" pattern with 3/8" hardware.
You'll want to grab the legs (104-JEH-019) to complement these table sections since they aren't included here. Just remember you're buying DXF cut files, so you'll have the plates cut and bent yourself before assembly.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 5x5' Table 3/8" bolt on 2x2" pattern (1/4" plate material) is $225.00.
This 5x5' Table 3/8" bolt on 2x2" pattern (1/4" plate material) is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for JEHC Race Chassis Tables plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the JEHC Race Chassis Tables category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across JEHC Fixture Tables, including JEHC Race Chassis Tables, all designed by working fab shops. Browse the JEHC Fixture Tables section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
