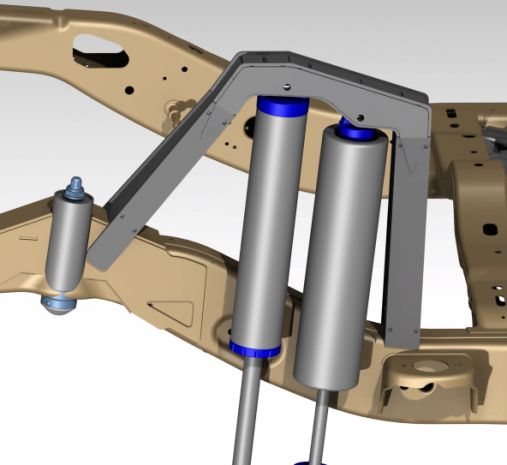

Jeep 2018+ JL Rear Shock Tower for rear frame notch/bumpstop kits.
To install this kit you are required to install the frame notch/bumpstop kits first, part numbers 608-JEH-001, 608-JEH-004, 608-JEH-005, and 608-JEH-006.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Jeep JL / JLU / JT Gladiator |
|---|---|
| Part Family | Jeep JL Rear Suspension (frame notch, shock tower, 4-link) |
| Position | Rear suspension |
| Build System | Coilover + bypass shock |
Frequently Asked Questions
You'll need to install the frame notch/bumpstop kits first — part numbers 608-JEH-001, 608-JEH-004, 608-JEH-005, and 608-JEH-006 — before this tower kit goes in. Grab those along with this one so you've got everything to fab the rear of your JL.
This one's plasma table friendly — it's all flat plate with no bends, so cutting and assembly is straightforward. Just follow the WPO steps so you keep the strength in the component.
It's set up for 2.5" by 12" stroke coilovers and up to 3.5" by 14" stroke bypass shocks. With that setup you'll get 20" of controlled wheel travel out of the rear of your JL.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Jeep 2018+ JL Rear Shock Tower for rear frame notch/bumpstop kits. is $68.00.
This Jeep 2018+ JL Rear Shock Tower for rear frame notch/bumpstop kits. is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Jeep JL Rear Suspension plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Jeep JL Rear Suspension category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Jeep JL (2018+), including Jeep JL Rear Suspension, all designed by working fab shops. Browse the Jeep JL (2018+) section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
