15" Beadlock - DIY Offroad Pattern

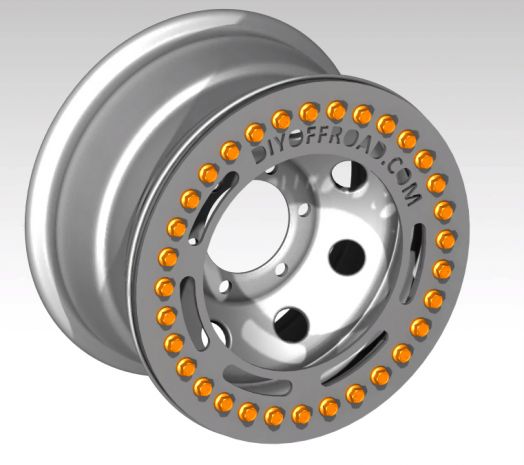

These beadlock cutfiles are designed for 15” wheels, the ProComp Steel wheels and others like them. They can be cut from either ¼” or 3/16” material and feature different patterns for your style preference. The bolt pattern is setup for serious abuse with plenty of bolts in the event you shear one off while on the trail.
Includes the file for the internal and external cover ring.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Details
These beadlock cutfiles are designed for 15” wheels, the ProComp Steel wheels and others like them. They can be cut from either ¼” or 3/16” material and feature different patterns for your style preference. The bolt pattern is setup for serious abuse with plenty of bolts in the event you shear one off while on the trail.
Includes the file for the internal and external cover ring.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
