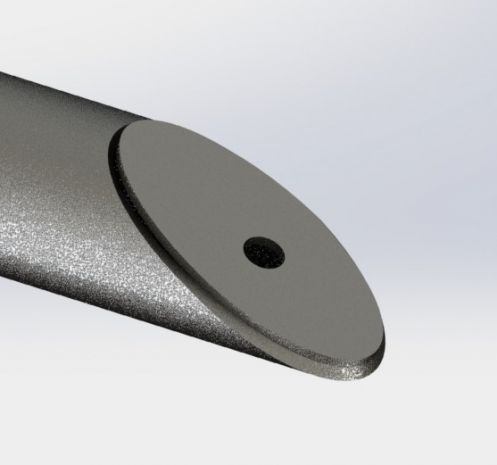

1.25" Round Tube Miter Joint Plates Pack
| Seller | JEH Consulting INC |
|---|
Frequently Asked Questions
This pack is sized specifically for 1.25" round tube. If you're running other tube sizes, shoot us an email and we'll see if Tekk has a file pack for your diameter.
It covers joint angles from 60 to 120 degrees in 5 degree steps, so you've got plates for just about any miter you'd run in a tube chassis. They're also broken out for 1/8", 3/32", and 1/16" tube wall, 39 files total.
Yep, you get DXF cut files for all 39 plates so you can run them on a plasma, laser, or waterjet, then weld them into your joints. If you need a shop to cut them for you, email us and we'll point you to one we trust.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 1.25" Round Tube Miter Joint Plates Pack is $12.00.
This 1.25" Round Tube Miter Joint Plates Pack is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Tube Miter Joint Plates Packets plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Tube Miter Joint Plates Packets category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Tabs, Gussets, and Brackets, including Tube Miter Joint Plates Packets, all designed by working fab shops. Browse the Tabs, Gussets, and Brackets section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
