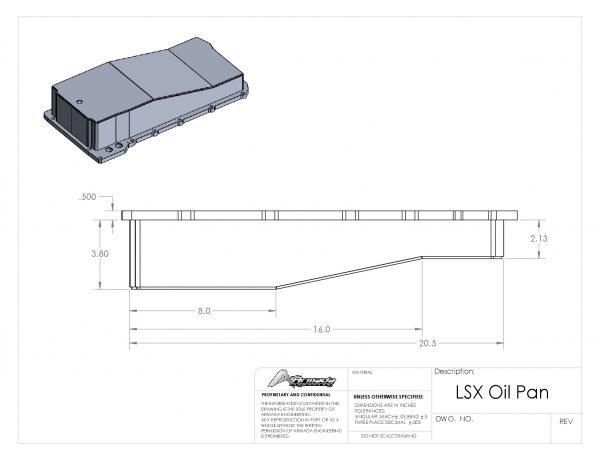

Low Profile Aluminum Oil Pan is the perfect solution to mounting your LS series engine as low as possible and in tight spaces. The pan is 4″ deep and fits all wet sump LS engines. Requires remote oil filter and modification of existing pick up.
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | LS engine swap |
|---|---|
| Part Family | LS Motor Plates / Motor Mounts / Oil Pan |
Frequently Asked Questions
It's designed to fit all wet sump LS engines, so an LS3 is good to go. Just keep in mind it runs a remote oil filter and you'll need to modify your existing pickup.
These are downloadable cut files, not a physical part. After payment you get the DXF to have cut on a plasma, laser, or waterjet, then weld up into your low-profile pan.
The pan is 4" deep to get your LS sitting as low as possible. You'll need a remote oil filter setup and you'll have to modify your existing pickup to work with it.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Low Profile LS Oil Pan is $25.00.
This Low Profile LS Oil Pan is brought to you by Armada Engineering. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for LS Motor Plates and Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the LS Motor Plates and Mounts category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Race/Play Chassis Components, including LS Motor Plates and Mounts, all designed by working fab shops. Browse the Race/Play Chassis Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
