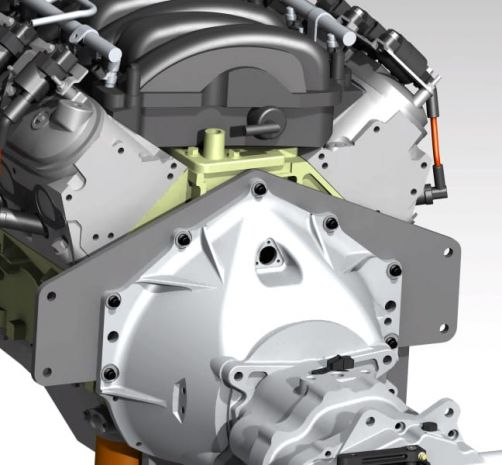

Solid LS Motor Plate 22" Spread - CAD and DXF File
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Frequently Asked Questions
You can run it anywhere from 3/16" 4130 plate up to 3/4" 6061 or 7075 aluminum, depending on your build. The DXF works on plasma, laser, or waterjet.
Yep, it's designed for an LS application with a 22" spread. If you're not sure it lines up with your setup, shoot us an email and we'll help you sort it out.
You get both — the DXF flat pattern for cutting and the solid CAD file so you can modify it or build a machined plate to your own spec and style.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Solid LS Motor Plate 22" Spread - CAD and DXF File is $26.00.
This Solid LS Motor Plate 22" Spread - CAD and DXF File is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for LS Motor Plates and Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the LS Motor Plates and Mounts category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Race/Play Chassis Components, including LS Motor Plates and Mounts, all designed by working fab shops. Browse the Race/Play Chassis Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
