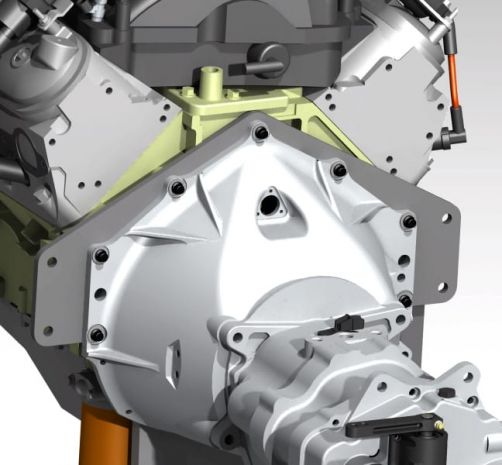

Solid LS Motor Plate 20" Spread - CAD and DXF File
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Frequently Asked Questions
You can run it anywhere from 3/16" 4130 plate up to 3/4" 6061 or 7075 aluminum, depending on how beefy you want it. The DXF cuts clean on plasma, laser, or waterjet, so pick the material that fits your build.
It's designed as an LS application plate with a 20" spread, so it's set up for the LS pattern. If you've got a specific setup in mind, shoot us an email and we'll make sure it lines up before you cut.
Yep, you get both the solid CAD file and the DXF flat pattern. The CAD lets you modify it or build a machined version to your own spec, and the DXF is ready to run on your table.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Solid LS Motor Plate 20" Spread - CAD and DXF File is $26.00.
