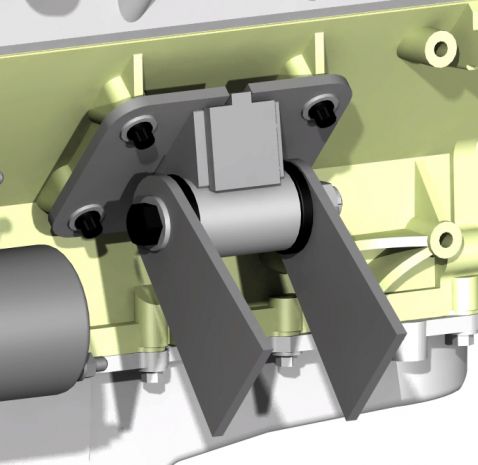

Bushing LS Motor Mount -PTF DXF File

These are made for a bushing application, so don't use them if you're hard mounting the motor or trans. The rule is don't mix and match — either bushing mount the whole drivetrain or hard mount the whole thing, not both.

The plates are designed so you can trim them to fit your own chassis/plate structure, so plan on doing some fitting once they're cut. You'll cut and bend (press) these from the DXF on a plasma, laser, or waterjet.

This is a digital download — you're getting the DXF cut files (or solid CAD) for the mount, not a physical part. Take them to a CNC plasma, laser, or waterjet to have the plates cut and pressed, and email us if you want a shop recommendation.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The Bushing LS Motor Mount -PTF DXF File is $18.00.

This Bushing LS Motor Mount -PTF DXF File is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

DIY Off Road has downloadable DXF cut files for LS Motor Plates and Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the LS Motor Plates and Mounts category, or shoot us an email and we will point you to the right files for your build.

Yeah — DIY Off Road carries downloadable DXF cut files across Race/Play Chassis Components, including LS Motor Plates and Mounts, all designed by working fab shops. Browse the Race/Play Chassis Components section or email us and we will help you track down the right files.

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
