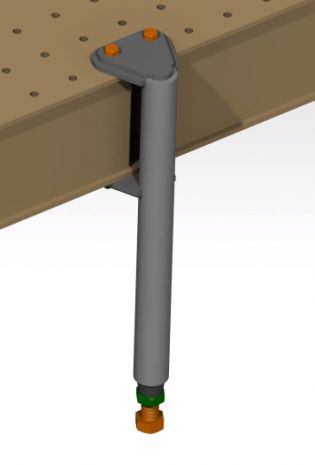

3/8" Bolt Imperial Table Legs
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Frequently Asked Questions
They're designed for the 104-JEH-018 or similar tables. If you've got a different table setup, email us and we'll see if these or another file will work for your build.
Yep, we give you a suggested height but you just cut the 1.5" x .250" wall tube to whatever length you need. The DXF files are for the plates that get cut and pressed, then you size the tube to suit your shop.
You're getting the DXF cut files for the leg plates so you can run them on a plasma, laser, or waterjet and bend them on a press. You'll also need to source the 1.5" x .250" wall tube and 3/4" bolts for the height alignment yourself.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 3/8" Bolt Imperial Table Legs is $12.00.
The 3/8" Bolt Imperial Table Legs is offered through the DIY Off Road marketplace, featuring cut-file designs from fabricators including All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for JEHC Race Chassis Tables plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the JEHC Race Chassis Tables category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across JEHC Fixture Tables, including JEHC Race Chassis Tables, all designed by working fab shops. Browse the JEHC Fixture Tables section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
