Ford F150 UCA 2015 2020

These are set up specifically for the 2015-2020 F150. If you're on an older truck, shoot us an email and we'll see if there's another file that works for your build.

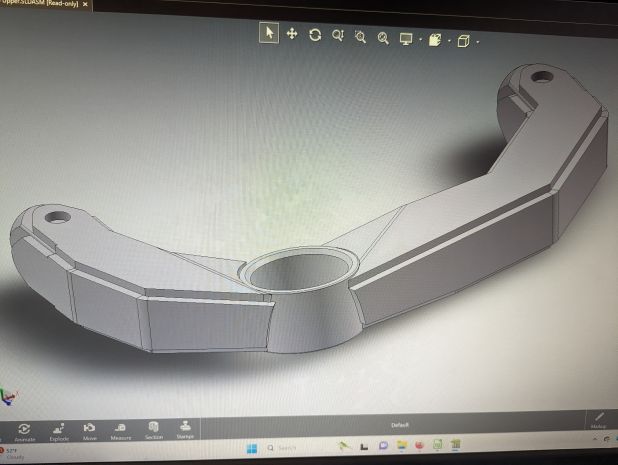

You get a mix of PDF, DXF and solid files, so you can run the DXFs on your plasma/laser/waterjet and have the solids and prints for reference. The download also includes the 1" uniball balljoint taper misalignment and the UCA jig files to help you build it right.

These are designed to run a 1" uniball at the spindle and 3/4" heims at the frame, so you'll want to grab those to finish the build. The misalignment spacers for the 1" uniball are included in the file set.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The Ford F150 UCA 2015 2020 is $75.00.
