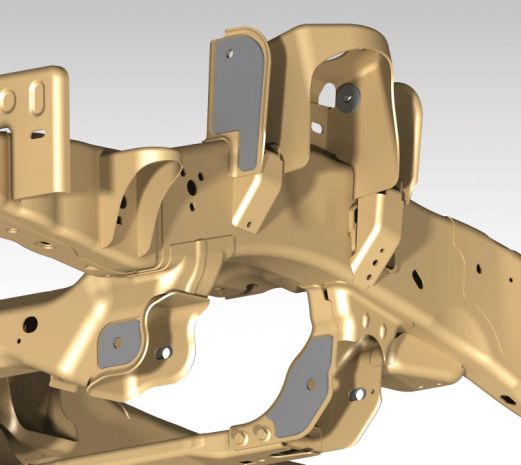

04-08 F150 2x4 Chassis Pivot Gusset Pack - PTF
Bolt Hole Sizes:
Front Lower Arm – 18mm″ Bolt
Front Upper Arm – 9/16″ Bolt
Front Leaf Spring – 18mm
Rear Spring/Shackle – 9/16″
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly – This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Ford F150 |
|---|---|
| Part Family | Gusset / Reinforcement Plate Kits |
| Position | Front suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
These cut files are designed specifically for the 04-08 F150 2x4 chassis pivots. If you're running a 4x4, shoot us an email and we'll see if there's another file that works for your build.
These are all flat plate, no bends needed, so they're plasma table friendly. Once you cut them and prep your frame they simply weld into the chassis pivots — just follow the WPO so you keep the strength.
You're buying the DXF cut files for the gusset pack, not a physical part. They're set up to cut clean on a CNC plasma, laser, or waterjet, so you can run them on your own table or have a shop cut them — email us if you want a shop recommendation.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 04-08 F150 2x4 Chassis Pivot Gusset Pack - PTF is $12.00.
This 04-08 F150 2x4 Chassis Pivot Gusset Pack - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Chassis Specific Gusset / Overlay Plates and Tabs plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Chassis Specific Gusset / Overlay Plates and Tabs category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Tabs, Gussets, and Brackets, including Chassis Specific Gusset / Overlay Plates and Tabs, all designed by working fab shops. Browse the Tabs, Gussets, and Brackets section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
