92-96 Ford Hidden Winch Bumper Brackets
Replacement brackets for stock bumper to allow mounting harborfreight winch plate and badlands winch.

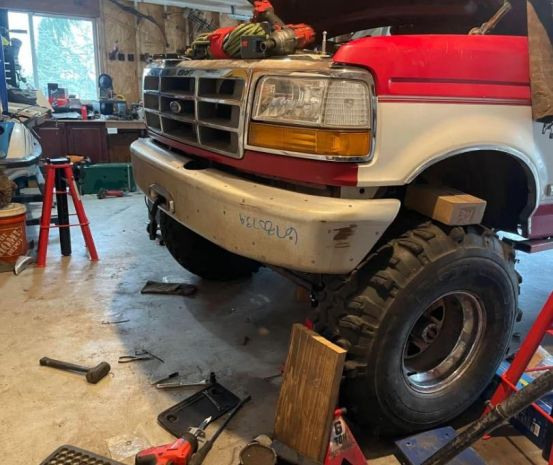

This set of brackets were designed for my bronco to utilize a slightly modified harbor freight winch plate, a badlands 12k winch, and a slightly modified stock bumper. It is designed to be up as high as possible to keep high clearance which means that the control box on top of the winch must be remote mounted under the hood. There's also an additional plate that goes back to the stock sway bar mounts for extra strength that gets match drilled to the stock holes. If you do not need the extra strength, use bracket titled "Mounting Bracket for stock bumper 4 Shortened". You will put a slight bend in the full length bracket depending on how high you mount the winch brackets and then weld the bend seams. You can see quantities in the included image file. Make sure you flip the bottom bracket for one side as the full assemblies need to be mirrored to match the winch plate. They are intended to be cut from 1/4" steel.
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Ford F150 |
|---|---|
| Part Family | Bumpers / Tire Carriers / Winch Inserts |
| Position | Front suspension |
