Chev S10 (94-04) Front Winch Bumper DXF CNC Files

Chev S10 (94-04) Front Winch Bumper DXF CNC Files

Be the first to review this product

$48.00

In stock

SKU

BLA-699-BRA-009

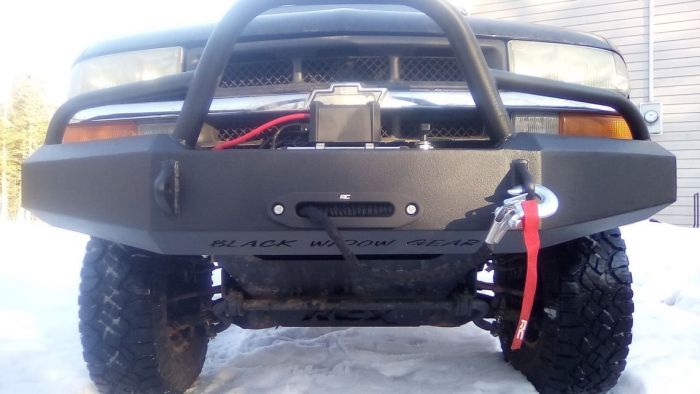

Chev S10 Front Winch Bumper

Details

94-04 Chev S10 Front Winch Bumper build plans. These are the digital DXF files to build the bumper listed. We have been selling this item as a prebuilt and DIY kit for the past 3 yrs with great success. Files are in DXF and SKP (sketchup) format and include detailed assembly instructions. Note this is the digital file to have these parts cut on a CNC table (plasma, laser, waterjet) and not the physical bumper. Details about our build plans - Originally drawn in either Sketchup or Solidworks - Each file is saved as the original CAD and a DXF copy is exported - All our bumpers were made the same way, 3/16" Body with 1/4" mounts, winch plates etc. - Most of our full-size truck bumpers will take 3/4 of a sheet of 3/16" and a 1/4 sheet of 1/4" (+/-). - Our fold and weld designs allow you to easily bend the panels by hand. It assures ease of assembly by placing each piece where it needs to go. We have found since adopting this type of design that our support questions have dropped dramatically. - All of these designs have been built several times in house and sold to customers in both DIY and prebuilt forms. Proven designs that fit! - We provide you with the assembly instructions for each kit. We do suggest always building on the vehicle to ensure proper gapping and fitment. - All files are easily editable with your choice of CAD programs. - End product can be resold all we ask is you please do not resell the files. We all have to make a living :-) If you have an issue with something please let us know! mistakes can happen and if we have something wrong we would love the chance to know about and fix the issue.

More Information

More Information
Seller	TEKK Consulting

Specifications

Platform	Chevy S-10
Part Family	Bumpers / Tire Carriers / Winch Inserts
Position	Front suspension
Build System	Plasma Table Friendly (PTF) flat-plate, no-bend

Frequently Asked Questions

Are these files just for the S10, or will they work on the same era Blazer or Sonoma?

These are confirmed for the 94-04 Chev S10 front end. If you're running a Blazer or Sonoma off that same platform, shoot us an email and we'll check if this file lines up for your build.

What thickness steel should I run these on my plasma table?

The DXF is the cut profile for the bumper, so you can scale the plate thickness to your build — most guys run a fabricated winch bumper out of 3/16" plate. If you want a recommendation dialed in for your setup, email us and we can connect you with the designer.

Does this come ready to bolt up or do I need to weld it together after cutting?

This is a fabricated bumper, so the files give you the flat cut pieces to run on your plasma, laser, or waterjet, then you tack and weld it up yourself. After payment you get the DXF download right away — no physical part ships.

How do I get the Chev S10 (94-04) Front Winch Bumper DXF CNC Files after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the Chev S10 (94-04) Front Winch Bumper DXF CNC Files cost?

The Chev S10 (94-04) Front Winch Bumper DXF CNC Files is $48.00.

Who designs the Chev S10 (94-04) Front Winch Bumper DXF CNC Files?

This Chev S10 (94-04) Front Winch Bumper DXF CNC Files is brought to you by Blackwidowgear. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Fabricated Bumpers?

DIY Off Road has downloadable DXF cut files for Fabricated Bumpers plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Fabricated Bumpers category, or shoot us an email and we will point you to the right files for your build.

Do you have Bumpers, Frame Horns, and Body Mounts cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Bumpers, Frame Horns, and Body Mounts, including Fabricated Bumpers, all designed by working fab shops. Browse the Bumpers, Frame Horns, and Body Mounts section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
