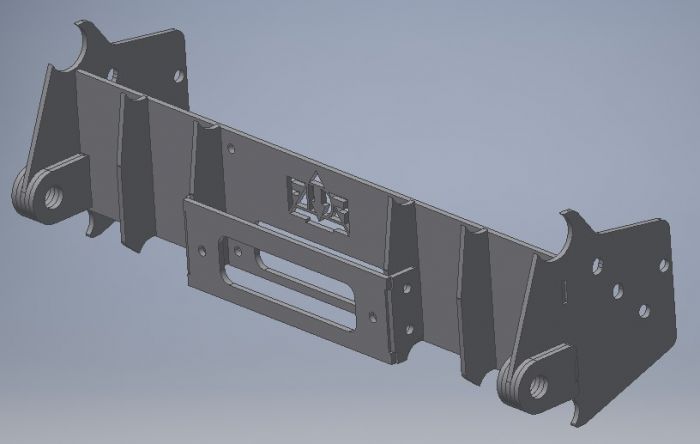

'81-'87 K-Series Fabricated Front Winch Bumper
Frequently Asked Questions
These are designed for the '81-'87 K-Series GM trucks and SUVs, so the Blazer and Suburban are covered along with the pickups. If you've got something outside that range, email us and we'll see if it'll work for your build.
You source your own tube — this kit is built to use 2" OD tubing for the main tube and 1.5" OD for the lower tube. You're buying the DXF cut files for the plate work, so run those on your plasma table and grab your tube locally.
It's a fabricated builder kit, so you'll be cutting the plate from the DXF files, bending your tube, and welding it all together into a finished bumper. Plan on a plasma table and a welder to get this one done.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The '81-'87 K-Series Fabricated Front Winch Bumper is $25.00.
This '81-'87 K-Series Fabricated Front Winch Bumper is brought to you by FDFabrication. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Fabricated Bumpers plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Fabricated Bumpers category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Bumpers, Frame Horns, and Body Mounts, including Fabricated Bumpers, all designed by working fab shops. Browse the Bumpers, Frame Horns, and Body Mounts section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
