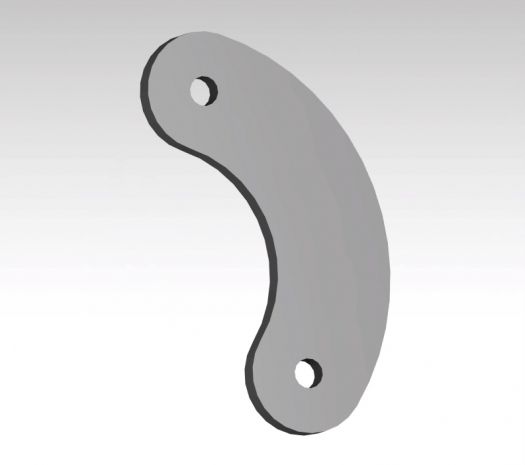

5" FLAT "CURVED" SHACKLE - Plasma Table Friendly
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Frequently Asked Questions
We suggest 3/8" for most applications. They can be cut from whatever material you choose, but follow the WPO so you keep the strength in the part.
Yep, the bushing sections are 2" outer diameter, so they work great with any shackle bushing pack from 2" on down. The mounting holes are set up for 1/2" bolts.
These are Plasma Table Friendly, so it's mostly or all flat plate with little to no bends. That makes cutting and assembly easy on a plasma table, just be sure to follow the WPO steps when you put them together.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 5" FLAT "CURVED" SHACKLE - Plasma Table Friendly is $4.00.
