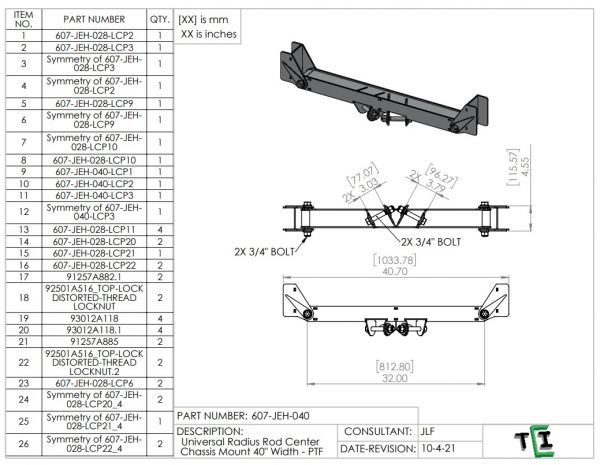

40" Width Universal Radius ARM Center Chassis Mount - Plasma Table Friendly

This one's Plasma Table Friendly, so it's mostly or all flat plate with little to no bends — easy to cut and assemble. Just make sure you follow the WPO (weld procedure/order) so you keep the strength once it's welded up.

It's built for 1.25" rod ends on 3" spread spacers with 3/4" bolts. If your radius arm setup runs different hardware, shoot us an email and we'll see if another file fits your build.

You're buying the digital files — DXF cut files (or solid CAD) so you can have the plates cut on a CNC plasma, laser, or waterjet. Nothing physical ships; you take the files and have them cut, then weld it into your chassis.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The 40" Width Universal Radius ARM Center Chassis Mount - Plasma Table Friendly is $28.00.

This 40" Width Universal Radius ARM Center Chassis Mount - Plasma Table Friendly is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

DIY Off Road has downloadable DXF cut files for Universal Beam and Radius Arm Chassis Mounts plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Universal Beam and Radius Arm Chassis Mounts category, or shoot us an email and we will point you to the right files for your build.

Yeah — DIY Off Road carries downloadable DXF cut files across Universal Beam Components, including Universal Beam and Radius Arm Chassis Mounts, all designed by working fab shops. Browse the Universal Beam Components section or email us and we will help you track down the right files.

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
