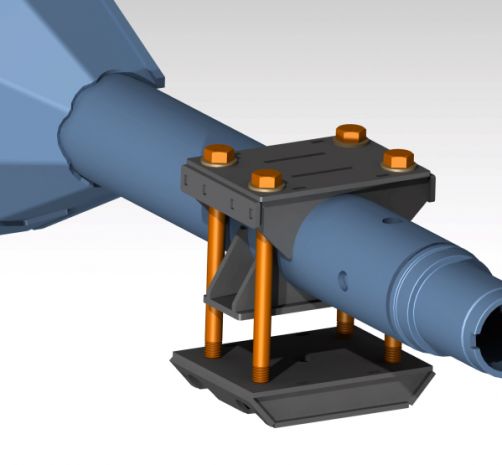

3" Spring and 3.25" Housing U-bolt Eliminator Kit - PTF
**This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.**
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Details
**This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.**
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Spring Perches / U-Bolt Eliminator Kits / Spring-Under Kits |
| Position | Rear suspension |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
This kit is set up specifically for a 3in spring on a 3.25in housing, so it matches that combo. If your housing is a different diameter, shoot us an email and we'll see if we've got a file that fits your build.
These are designed plasma table friendly with no bends, so it's all flat plate you can cut and weld up easy. Just follow the included WPO steps so you keep the strength in the part.
You're buying the DXF cut files so you can have the plates cut on a CNC plasma, laser, or waterjet, then weld them in using the spring perch for your 3in spring and 3.25in housing. No physical parts ship, just the files to get them cut.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 3" Spring and 3.25" Housing U-bolt Eliminator Kit - PTF is $18.00.
This 3" Spring and 3.25" Housing U-bolt Eliminator Kit - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for U-Bolt Eliminator Kits plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the U-Bolt Eliminator Kits category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Leaf Spring Components, including U-Bolt Eliminator Kits, all designed by working fab shops. Browse the Leaf Spring Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
