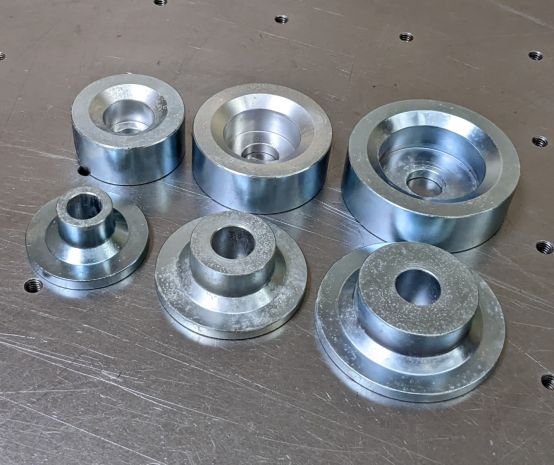

3 PIECE DIMPLE DIE SET - 1" - 1.5" - 2"
These dimple dies are the perfect set for the home fabricator, the three main sizes that are universally used in almost all build applications. They are precision machiend from SAE8620 bearing steel then heat treated before getting a zinc coating. They work great in the Harbor Freight 20- ton press or even with Large Bolts using an Impact to create the dimple. Rated for up to 1/8" 4130 material.
Frequently Asked Questions
They work great in a 20-ton press like the Harbor Freight one, but you can also run them with a large bolt and an impact if you don't have a press. Either way you'll get a clean dimple.
They're rated up to 1/8" 4130, so they'll handle most chromoly and mild steel gusset and panel work just fine. Go thicker than that and you're pushing past what they're built for.
You get the three main sizes that cover almost every build — 1", 1.5", and 2". They're machined from SAE8620 bearing steel, heat treated, then zinc coated, and they ship right to you ready to use.
The 3 PIECE DIMPLE DIE SET - 1" - 1.5" - 2" is $125.00.
The 3 PIECE DIMPLE DIE SET - 1" - 1.5" - 2" is offered through the DIY Off Road marketplace, featuring cut-file designs from fabricators including All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for TOOLS plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the TOOLS category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Fabrication / Hard Parts, including TOOLS, all designed by working fab shops. Browse the Fabrication / Hard Parts section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
