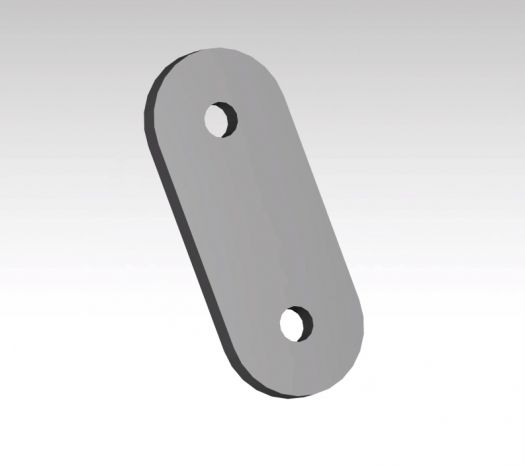

3" FLAT SHACKLE - Plasma Table Friendly
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Frequently Asked Questions
We suggest 3/8" for most applications, but since it's a DXF you can run it from whatever material fits your build. Just follow the WPO so you keep the strength in the part.
Yep, they're designed with 2" outer diameter bushing sections that work great with any shackle bushing packs from 2" on down. The mounting holes are sized for 1/2" bolts too.
These are Plasma Table Friendly, so it's mostly or all flat plate with little to no bends — easy to cut and assemble. Just make sure you follow the WPO during assembly to keep the part strong.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 3" FLAT SHACKLE - Plasma Table Friendly is $4.00.
This 3" FLAT SHACKLE - Plasma Table Friendly is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Flat Plasma Table Friendly Shackles plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Flat Plasma Table Friendly Shackles category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Leaf Spring Components, including Flat Plasma Table Friendly Shackles, all designed by working fab shops. Browse the Leaf Spring Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
