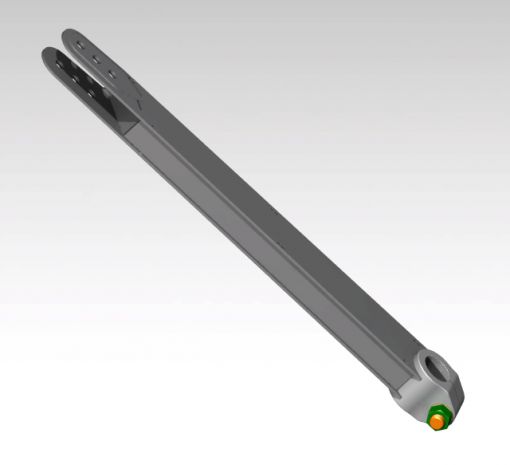

16" UTV Sway Bar - Multiple Mount - PTF
These Sway bar arms are designed for UTV applications and designed for the 1” broached ends that are available on the site under the Fabrication/Hard Parts Section. They are setup perfectly for a variety of UTV applications and mounting styles. Either front or rear these sway bar setups are plasma table friendly and provide the perfect amount of strength to complement your UTV project. Designed for the high-mis alignment rod ends from FX (part number HRSMX8T) that are available at Kertek.com and other retailers alike.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Frequently Asked Questions
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 16" UTV Sway Bar - Multiple Mount - PTF is $8.00.
This 16" UTV Sway Bar - Multiple Mount - PTF is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for UTV - Plasma Table Friendly Sway Bar Arms plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the UTV - Plasma Table Friendly Sway Bar Arms category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Sway Bar Arms, including UTV - Plasma Table Friendly Sway Bar Arms, all designed by working fab shops. Browse the Sway Bar Arms section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
