15" Beadlock - Large Oval Pattern

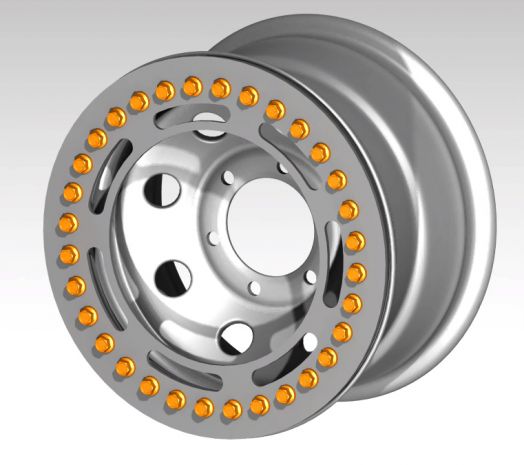

These beadlock cutfiles are designed for 15” wheels, the ProComp Steel wheels and others like them. They can be cut from either ¼” or 3/16” material and feature different patterns for your style preference. The bolt pattern is setup for serious abuse with plenty of bolts in the event you shear one off while on the trail.
Includes the file for the internal and external cover ring.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
Details
These beadlock cutfiles are designed for 15” wheels, the ProComp Steel wheels and others like them. They can be cut from either ¼” or 3/16” material and feature different patterns for your style preference. The bolt pattern is setup for serious abuse with plenty of bolts in the event you shear one off while on the trail.
Includes the file for the internal and external cover ring.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Beadlock Wheel Rings |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
Yep, these are designed for 15" wheels including the ProComp steel wheels and others like them. If you've got a different wheel you're not sure about, shoot us an email and we'll help you figure out if these will work.
You can cut these from either 1/4" or 3/16" material, whatever suits your build. These are plasma table friendly with little to no bends, so they're easy to run and assemble.
Yes, the purchase includes the DXF files for both the internal and external cover ring. Just remember this is a digital download — you're getting the cut files to have them cut yourself, not physical parts.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 15" Beadlock - Large Oval Pattern is $7.00.
This 15" Beadlock - Large Oval Pattern is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Beadlock Wheels plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Beadlock Wheels category, or shoot us an email and we will point you to the right files for your build.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
