Universal Steering Swinger / Pitman Arm Pack
These swingers and pitman arm are used on the front I-Beam Bulkheads From JEHC that graft into various platforms. They can be used with the JEHC universal beams or with something custom/other equal length beam setups.
Setup for 7/8” bearing (rod ends) and standard misalignment spacers they are designed for use with 40” tires on full-size trucks.

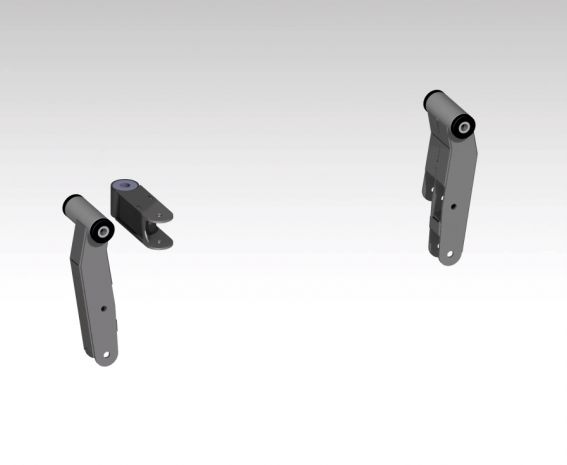

The cutpack includes the driver swinger, passenger swinger, and pitman arm with the appropriate files and machine documents necessary.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Steering Swingers / Pitman Components / Steering Column |
| Build System | I-beam / Twin I-Beam (TTB) |
Frequently Asked Questions
Either works. They're built for the JEHC universal beams but you can run them on something custom or any other equal-length beam setup.
They're set up for 7/8" bearing rod ends with standard misalignment spacers, and designed for 40" tires on full-size trucks.
They're Plasma Table Friendly, so mostly or all flat plate with little to no bends. Just make sure you follow the WPO docs included in the pack so you keep the strength right when you assemble.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Universal Steering Swinger / Pitman Arm Pack is $92.00.
This Universal Steering Swinger / Pitman Arm Pack is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Universal Steering Components plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Universal Steering Components category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Universal Beam Components, including Universal Steering Components, all designed by working fab shops. Browse the Universal Beam Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
