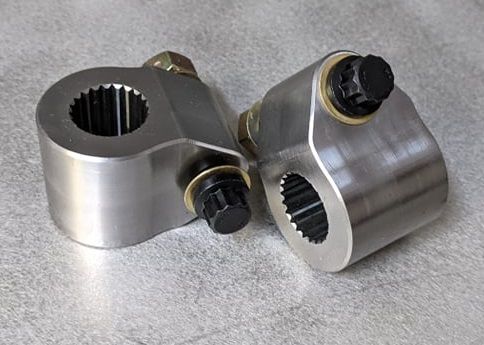

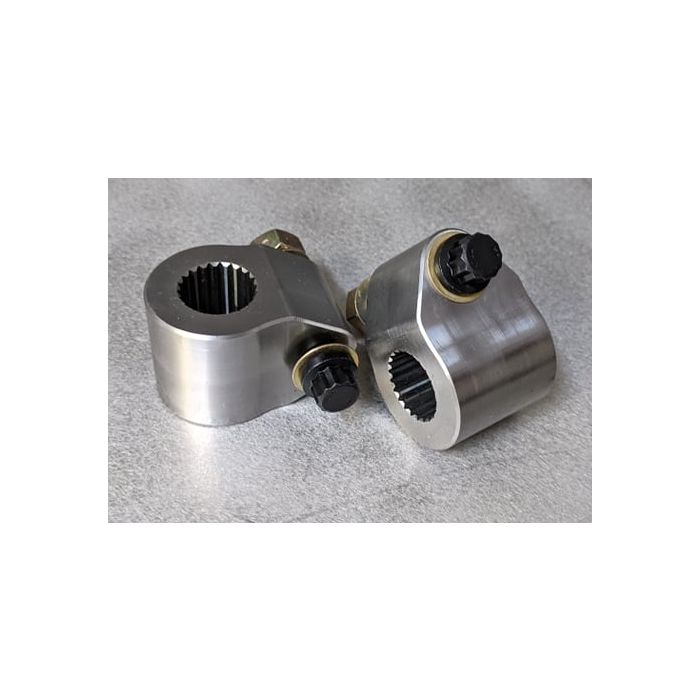

1"-22 Spline Billet 4130 Sway Bar Ends (PAIR)
These Machined Sway bar ends are the perfect complement to a fabricated sway bar arm, machined from 4130 and precision broached for the sway bar of your choice these are designed for abuse. The 1/2" bolt clamp ensures that the arm stays located on the bar even in extreme conditions and flex that vehicles like tube chassis race UTV applications and front centermount sway bar stups see. All of the sway bar ends like this one are broached for Swayaway Sway Bars, for information on order a sway bar please contact [email protected] and they will get you situated. Each sway bar end kit comes with two 4130 machined sway bar ends with four 12 point bolts and washers. Enough for one set of fabricated sway bar arms.
The spline pattern is 22 on a 1" diameter, known as "1" - 22T 24/48 45deg FRSV Spline"
Shipping available to U.S. addresses only.
Frequently Asked Questions
These are broached for Swayaway sway bars in the 1"-22 spline pattern. If you need a sway bar to match, shoot an email to [email protected] and they'll get you set up.
You get a pair of two 4130 machined sway bar ends along with four 12-point bolts and washers — enough for one set of fabricated sway bar arms. Just add your own fabricated arms and you're good to go.
Right now shipping is U.S. addresses only. If you're outside the States, email [email protected] and we'll see what we can work out for your build.
The 1"-22 Spline Billet 4130 Sway Bar Ends (PAIR) is $275.00.
