Universal Y Frame Fixture

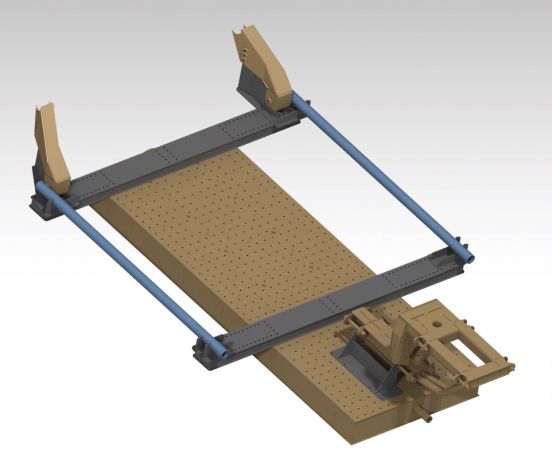

This fixture setup is designed for building tube Y-Frame Assemblies with all the various JEHC Bulkheads and Rear Pivot Boxes. Mounting this setup on part number 104-JLF-013 (82″x30″ IMPERIAL 2″x2″ Pattern Table) will allow for building Y-Frame setups up to 145” in wheelbase and trackwidth of 74”-98” to fit just about any truck application.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Tube-chassis / roll cage (generic round-tube build) |
|---|---|
| Part Family | Table Accessories / Sub-Fixtures |
| Build System | Imperial 2x2 vs Metric 50x50 fixturing |
Frequently Asked Questions
This setup is designed to mount on part number 104-JLF-013, the 82"x30" Imperial 2"x2" pattern table. If you're running a different table, shoot us an email and we'll see if we can sort out a fit for your setup.
Mounted on the 82"x30" Imperial table, you can build Y-Frame setups up to 145" wheelbase with a track width of 74"-98", so it covers just about any truck application.
These are digital DXF cut files, not physical parts. You'll have the plates cut and bent (press) from a CNC plasma, laser, or waterjet, then build your fixture from there.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Universal Y Frame Fixture is $342.00.
The Universal Y Frame Fixture is offered through the DIY Off Road marketplace, featuring cut-file designs from fabricators including All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Imperial JEHC Tables plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Imperial JEHC Tables category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across JEHC Fixture Tables, including Imperial JEHC Tables, all designed by working fab shops. Browse the JEHC Fixture Tables section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
