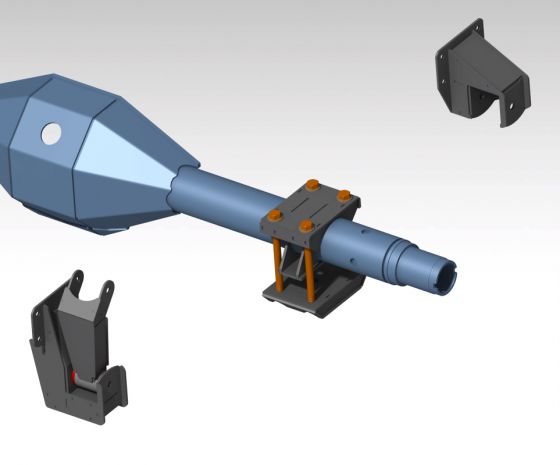

Universal 64" Spring Under Kit for 3.25" Diameter Housing
Leaf Springs – This setup is designed to work with the Deaver Suspension 64” long travel spring pack, the 2.5” spring G2 pack available directly from Deaver Spring. (deaverspring.com)
Includes the Following Cutfiles:
-9” DIY Plasma Friendly Long Travel Shackle (603-JEH-012)
-Universal Rear Spring Hanger Weld/Bolt on (603-JEH-037)
-Universal Front Spring Hanger Weld/Bolt on (603-JEH-038)
-U Bolt Eliminator Kit (for the Housing Tube Diameter listed Above)
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Spring Perches / U-Bolt Eliminator Kits / Spring-Under Kits |
| Position | Rear suspension |
| Build System | Leaf spring / spring-under |
Frequently Asked Questions
This kit's U-bolt eliminator is cut specifically for a 3.25" diameter housing tube, so that's what it's confirmed for. If you're running a different tube diameter, shoot us an email and we'll see if we have a file that matches your housing.
The front and rear spring hangers are set up to either weld or bolt on, so you've got options depending on how you want to run them on your build. Just follow the WPO instructions to keep the strength where it needs to be.
This setup is designed around the Deaver Suspension 64" long travel spring pack (the 2.5" G2 pack), which you can get straight from Deaver at deaverspring.com. You're buying the DXF cut files here, so you'll have the plates cut and pressed, then pair them with that spring pack for the spring under setup.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Universal 64" Spring Under Kit for 3.25" Diameter Housing is $63.00.
This Universal 64" Spring Under Kit for 3.25" Diameter Housing is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Leaf Spring Shackle/Hanger/Mount Kits and Packages plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Leaf Spring Shackle/Hanger/Mount Kits and Packages category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Leaf Spring Components, including Leaf Spring Shackle/Hanger/Mount Kits and Packages, all designed by working fab shops. Browse the Leaf Spring Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
