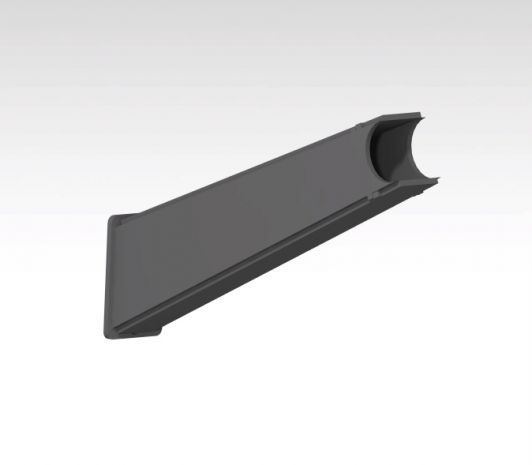

Tube Bumper Frame HORN 68DEG (Ford Ranger Edge)

These are designed for the Ford Ranger Edge. If you're running a different year or model Ranger, shoot us an email and we'll see if another file works for your build before you buy.

They're set up around a 2" tube — you trim the factory frame back using the main 2" tube location as your reference, then bend up a 2" tube as the starting point that indexes into the horns. From there you build the bumper out however you want.

It's a digital download — after payment you get the DXF cut files to run on your plasma, laser, or waterjet. Then you weld up the horns and trim the frame back to locate your bumper. If you need a shop to cut them, email us and we'll point you to one.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The Tube Bumper Frame HORN 68DEG (Ford Ranger Edge) is $9.00.

This Tube Bumper Frame HORN 68DEG (Ford Ranger Edge) is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

DIY Off Road has downloadable DXF cut files for Tube Bumper Frame Horns plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Tube Bumper Frame Horns category, or shoot us an email and we will point you to the right files for your build.

Yeah — DIY Off Road carries downloadable DXF cut files across Bumpers, Frame Horns, and Body Mounts, including Tube Bumper Frame Horns, all designed by working fab shops. Browse the Bumpers, Frame Horns, and Body Mounts section or email us and we will help you track down the right files.

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
