Tilt Up 110 Gallon Fuel Tower CAD files

Be the first to review this product

$150.00

In stock

SKU

ARM-1853-ELL-002

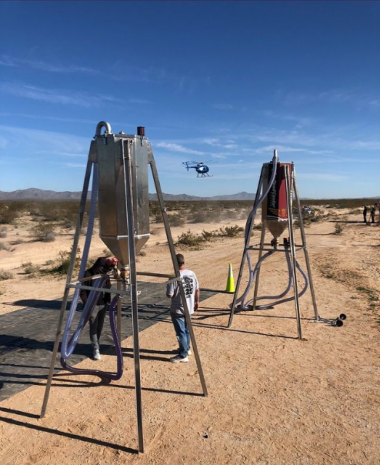

Tilt Up 110 Gallon Fuel Tower CAD files. Aluminum cylindrical design to maximize head pressure as fuel is being dumped. Folding legs make it easy to set up, transport and store.

Details

Tilt Up 110 Gallon Fuel Tower CAD files. Aluminum cylindrical design to maximize head pressure as fuel is being dumped. Folding legs make it easy to set up, transport and store.

***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

More Information

More Information
Seller	Elliot Pollock

Specifications

Platform	Universal / platform-agnostic
Part Family	Misc Chassis Mounts & Accessories (fire ext, battery, fuel cell, fuel tower)

Frequently Asked Questions

What thickness aluminum should I cut this fuel tower from?

The files are designed for an aluminum cylindrical build, but we don't list a specific gauge in the product info. Shoot us an email and we'll get you the recommended material thickness from Armada before you run them.

Are the folding legs and the tank all included in these files, or just the tank?

The CAD files cover the full tilt up 110 gallon tower, including the folding legs that make it easy to set up, transport and store. It's all there in one download.

Can I just send these straight to my waterjet, or do they need any prep first?

You'll get the CAD/DXF files as a digital download after payment, ready to run on a plasma, laser, or waterjet. If you need a shop to cut or roll the aluminum, email us and we'll point you to one we trust.

How do I get the Tilt Up 110 Gallon Fuel Tower CAD files after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the Tilt Up 110 Gallon Fuel Tower CAD files cost?

The Tilt Up 110 Gallon Fuel Tower CAD files is $150.00.

Who designs the Tilt Up 110 Gallon Fuel Tower CAD files?

This Tilt Up 110 Gallon Fuel Tower CAD files is brought to you by Armada Engineering. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Fixture and Tools?

DIY Off Road has downloadable DXF cut files for Fixture and Tools plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Fixture and Tools category, or shoot us an email and we will point you to the right files for your build.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
