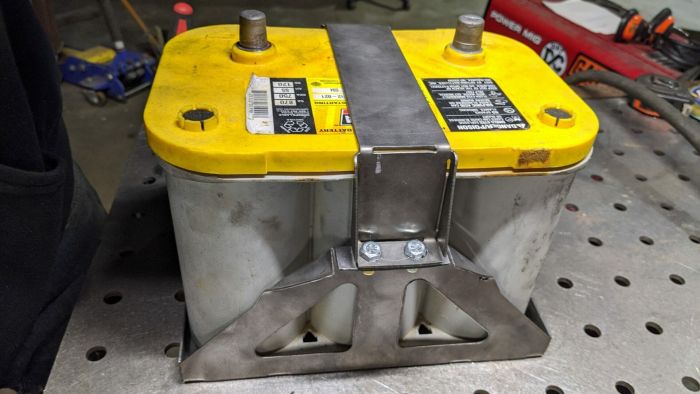

Optima Battery Box - Plasma Table Friendly from Dirt Cinema
PTF (Plasma Table Friendly) - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Frequently Asked Questions
These files are designed around the Optima battery, so they're sized for it. If you're running a specific Optima group size, shoot us an email and we'll confirm it lines up before you cut.
They're PTF (Plasma Table Friendly), so it's all flat plate with no bends in the cut. You bend it by hand after cutting, and just make sure you follow the WPO steps so it keeps its strength.
You're buying the digital DXF cut files (CAD/solid files available too) so you can have the plates cut on a plasma, laser, or waterjet. The instructions (WPO) walk you through the assembly steps, and if you need a shop to cut or bend it for you, email us and we'll point you to one.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Optima Battery Box - Plasma Table Friendly from Dirt Cinema is $18.00.
This Optima Battery Box - Plasma Table Friendly from Dirt Cinema is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Chassis Mounts for Misc Items plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Chassis Mounts for Misc Items category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Mounts and Accessories, including Chassis Mounts for Misc Items, all designed by working fab shops. Browse the Mounts and Accessories section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
