Dodge Ram 2500/3500 Front Winch Bumper

Details

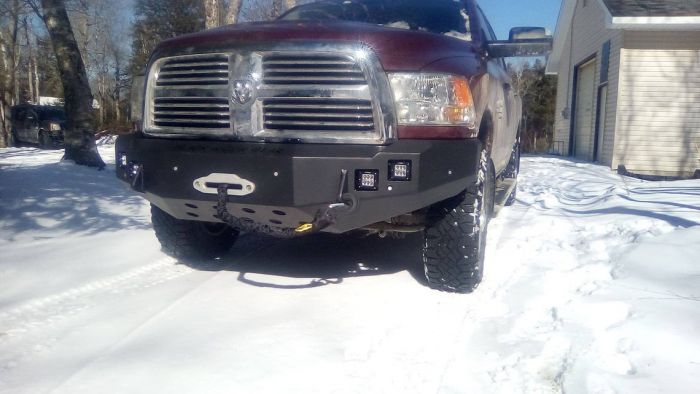

Our Dodge Ram 2500/3500 front winch bumper is able to handle up to a 17,500lb winch. Two-Piece design makes assembly and gapping super easy. This is for the DXF files to duplicate this bumper. Comes with full assembly instructions. Details about our build plans - Originally drawn in either Sketchup or Solidworks - Each file is saved as the original CAD and a DXF copy is exported - All our bumpers were made the same way, 3/16" Body with 1/4" mounts, winch plates etc. - Most of our full-size truck bumpers will take 3/4 of a sheet of 3/16" and a 1/4 sheet of 1/4" (+/-). - Our fold and weld designs allow you to easily bend the panels by hand. It assures ease of assembly by placing each piece where it needs to go. We have found since adopting this type of design that our support questions have dropped dramatically. - All of these designs have been built several times in house and sold to customers in both DIY and prebuilt forms. Proven designs that fit! - We provide you with the assembly instructions for each kit. We do suggest always building on the vehicle to ensure proper gapping and fitment. - All files are easily editable with your choice of CAD programs. - End product can be resold all we ask is you please do not resell the files. We all have to make a living :-) If you have an issue with something please let us know! mistakes can happen and if we have something wrong we would love the chance to know about and fix the issue.

More Information

More Information
Seller	TEKK Consulting

Specifications

Platform	Dodge Ram 1500/2500/3500
Part Family	Bumpers / Tire Carriers / Winch Inserts
Position	Front suspension
