Buggy / Sand Truck Stage 1 - PTF - Bulkhead

$900.00
In stock
SKU
Buggy Sand Truck Stage 1 Bulk JEH

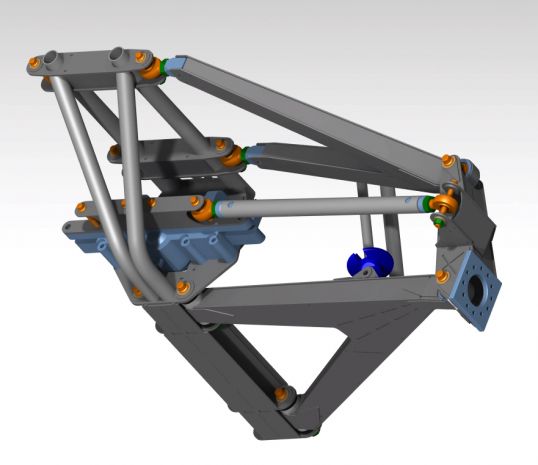

Arm and Bulkhead Component Specs:

          Bulkhead – All plate construction with 1/8” and uses sheetmetal weld washers for all bolt hole locations. Setup for the Howe 100 Rack this bulkhead is self-locating (snap together).

          Lower Arm – Uses Standard Delrin Pivots on the chassis side along with 1” uni-ball bearings for the upright location.

          Upper Arm – Uses 7/8” Rod ends with Standard Square receivers (bungs) with the same 1” bearing for the upright as the lower arm.

          Upright – Uses a Standard 12 bolt face plate available on DIYoffroad.com or other suppliers. The spacers for the arms and steering are all standard.

Trackwidth – Multiple options available for the width, note that with JEHC after you order.

Shocks / Wheel Travel – These front ends are designed to fit shock packages up to 2.5” coilvoers with a 3.5” bypass.

Steering Setup – This Bulkhead is designed for a Howe 101 Rack, the bulkhead will fit a variety of racks from HOWE that match the same pattern.

(Custom options are Available, please contact JEHC Consluting for Questions.)

Hubs and Brakes – This platform utilizes standard 12 bolt faceplates for a variety of bolt on hub options. Other options are available, contact [email protected]

Tires and Wheels – Depends on the hub setup you utilize but the uprights are optimized for 35-37” tires, either sand or buggy.

Bulkhead Rake – 6- 8 degrees of Rake

***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***

Plasma Table Friendly - This means that the component is designed with no bends, all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.

Links

The Stage 1 BUGGY/SAND TRUCK Bulkhead is the perfect starting point for your next tube chassis Buggy/ Sand Truck project or grafting onto and existing chassis. From two seat VB bugs to Fullsize 4 seat sand trucks these JEHC Bulkheads are designed to be fabrication friendly, taking the guess work out of complex suspension setup and geometry.

Stage 1 refers to the style of the components in this assembly, everything in this Bulkhead Package can be cut from Mild Steel and MIG welded. Some clients cut them from 4130 Chromoly and TIG weld them but Stage 1 Components are designed to complement MIG welding.

All of the Arms, Uprights, and Bulkhead is designed in a simple “snap together” fashion for a very fabrication friendly setup.

More Information
Seller JEH Consulting INC
Write Your Own Review
You're reviewing:Buggy / Sand Truck Stage 1 - PTF - Bulkhead
Your Rating

Frequently Asked Questions

How do I get the Buggy / Sand Truck Stage 1 - PTF - Bulkhead after I buy it?

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

How much does the Buggy / Sand Truck Stage 1 - PTF - Bulkhead cost?

The Buggy / Sand Truck Stage 1 - PTF - Bulkhead is $900.00.

Who designs the Buggy / Sand Truck Stage 1 - PTF - Bulkhead?

This Buggy / Sand Truck Stage 1 - PTF - Bulkhead is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.

Where can I get cut files for Complete Bulkhead (Front End) Assemblies?

DIY Off Road has downloadable DXF cut files for Complete Bulkhead (Front End) Assemblies plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Complete Bulkhead (Front End) Assemblies category, or shoot us an email and we will point you to the right files for your build.

Do you have Race/Play Chassis Components cut files for an off-road or race build?

Yeah — DIY Off Road carries downloadable DXF cut files across Race/Play Chassis Components, including Complete Bulkhead (Front End) Assemblies, all designed by working fab shops. Browse the Race/Play Chassis Components section or email us and we will help you track down the right files.

Can you point me to a shop to get these cut and bent?

Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.

How do I get the files, and what do I do with them?

Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.

Do I need to know how to weld and fab to use these?

Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
