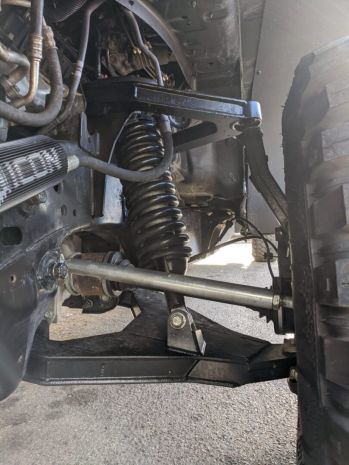

16-19 Titan HD 4X4 Bolt in Mid Travel setup 4" Wider (PTF)
You will need to get extended steering and axles to match the arms.
PTF (Plasma Table Friendly) - This means that the component is designed with little to no bends, mostly or all flat plate. This makes the cutting and assembly very easy for anyone with a plasma table. Specific steps are required (follow the WPO) to ensure the strength is kept with this component.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
More Information
| Seller | Jason Heard |
|---|
Specifications
| Platform | Nissan (Titan / Frontier / Xterra) |
|---|---|
| Part Family | Vehicle-Specific Bolt-In Mid/Long-Travel Kits |
| Position | Front suspension |
| Build System | Mid-travel |
Frequently Asked Questions
These are a bolt-in mid travel setup, so they go in with the stock ball joints, uprights, hubs, and brakes. Just keep in mind you'll need extended steering and axles to match the 4" wider trackwidth.
They're PTF (Plasma Table Friendly), so it's mostly or all flat plate with little to no bends — easy to cut and assemble if you've got a plasma table. Just follow the WPO steps so the arms keep their strength once welded up.
This file is designed for the 16-19 Titan HD 4X4. If you're running something different, shoot us an email and we'll see if another file works for your build.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The 16-19 Titan HD 4X4 Bolt in Mid Travel setup 4" Wider (PTF) is $250.00.
This 16-19 Titan HD 4X4 Bolt in Mid Travel setup 4" Wider (PTF) is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for 16-19 Nissan Titan HD plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the 16-19 Nissan Titan HD category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Vehicle Specific Components, including 16-19 Nissan Titan HD, all designed by working fab shops. Browse the Vehicle Specific Components section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
