Toyota 5th Gen 4 Runner (09-Pres) Front Winch Insert Build Files
Toyota 5th Gen 4 Runner (09-Pres) Front Winch Insert Build Files

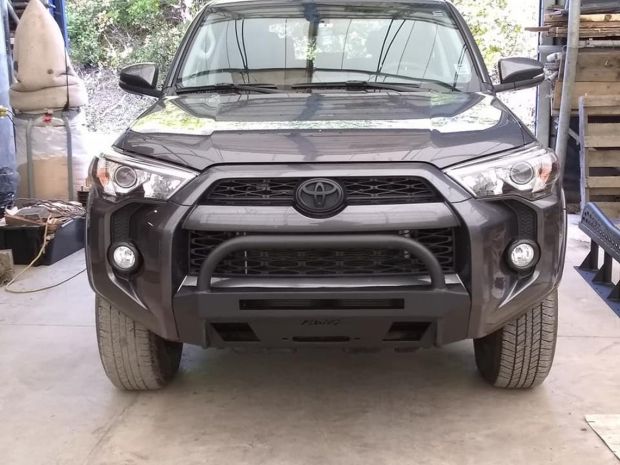

These are the CNC DXF files to build this winch insert. Includes full assembly instructions. All files in DXF and SKP formats. We have been selling these items as prebuild and DIY kits. Now offering the build files. Note: This listing is for a digital file with the cnc cut files to build the bumper above, not the physical bumper itself.
| Seller | TEKK Consulting |
|---|
Specifications
| Platform | Toyota 4Runner / FJ Cruiser |
|---|---|
| Part Family | Bumpers / Tire Carriers / Winch Inserts |
| Position | Front suspension |
Frequently Asked Questions
Yep, this is a winch insert built for the 5th Gen 4Runner front end. The files give you the insert plates to weld up, but we don't have a specific winch model called out in the listing — shoot us an email with the winch you're running and we can point you the right way.
These are confirmed for the 5th Gen 4Runner, 2009 to present, so any year in that gen should be good. If you've got something outside that, email us and we'll see if another file works for your build.
The download is DXF cut files you can run on a plasma, laser, or waterjet, but we don't have a material thickness spec listed for this one. Email us and we'll get you the recommended thickness for the insert, plus a shop rec if you don't have a table to cut them yourself.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Toyota 5th Gen 4 Runner (09-Pres) Front Winch Insert Build Files is $65.00.
This Toyota 5th Gen 4 Runner (09-Pres) Front Winch Insert Build Files is brought to you by Blackwidowgear. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Fabricated Bumpers plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Fabricated Bumpers category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across Bumpers, Frame Horns, and Body Mounts, including Fabricated Bumpers, all designed by working fab shops. Browse the Bumpers, Frame Horns, and Body Mounts section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
