Details

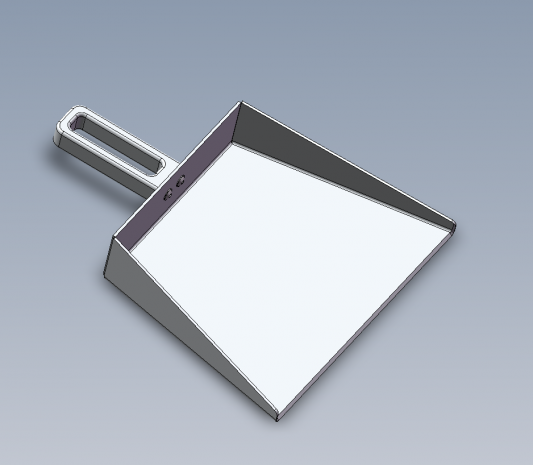

The ultimate heavy duty dust pan with a billet handle for those who are tired of cheap flimsy dust pans that always break.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | Consumables / Abrasives / Merch / Shop Novelty |
| Build System | Plasma Table Friendly (PTF) flat-plate, no-bend |
Frequently Asked Questions
The files are set up for a heavy duty pan, so we'd run them in steel thick enough to hold up without flexing. The DXF doesn't lock you into a gauge though, so cut it from whatever sheet you've got that fits your bend setup — if you want a specific recommendation just email us.
It's designed to be cut flat and then bent in a press to form the pan, so you'll want access to a press brake. The DXF gives you the flat pattern to run on your plasma, laser, or waterjet before bending.
You're purchasing the DXF cutting files for this component as a digital download. If you're not sure the handle file is in the set for what you want to build, shoot us an email and we'll confirm exactly what comes with it before you buy.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The The Ultimate Dust Pan is $15.00.
This The Ultimate Dust Pan is brought to you by Armada Engineering. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models, Superioroffroaddesigns and Velocity Fab. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Fixture and Tools plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Fixture and Tools category, or shoot us an email and we will point you to the right files for your build.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
Reviews
No reviews yet.
