PRP SUMMIT SEAT- Scan CAD File

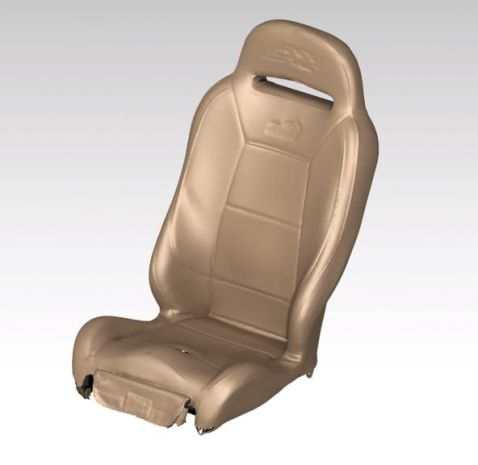

These seat scans are setup for use in a chassis project, something we do daily at JEHC. If you are designing a new chassis or need to place a seat to make the mounts for an existing chassis this is the perfect file. We use this style of seat scan file to design seat mounts in everything from race trucks to SEMA project vehicles.
The scans are delivered in ZIP folders in STEP file format. IF you need another format please email [email protected] with your request and order number, we can get you any file type you request.
Each seat is scanned from a new physical seat from the manufacture, this means they are not perfect. They are slightly tweaked because all seats come from the manufactures with slight tolerance differences. They are not symmetrical (computer perfect) but they work great for designing the chassis and seat mounts. To assist you in design of the seat mounts we have also placed geometry blocks in the CAD files for the seat mounts.
***This product is a Digital Asset. You are purchasing the cutting files (DXF) or Solid (CAD) files for this component so that you can have these plates cut and bent (press) from a CNC plasma, laser, or waterjet machine.***
Specifications
| Platform | Universal / platform-agnostic |
|---|---|
| Part Family | 3D Scan / CAD Reference Files |
Frequently Asked Questions
They're delivered as STEP files inside a ZIP folder, which drops right into most chassis design programs. If you need another format, just email [email protected] with your request and order number and they'll get you whatever file type you need.
It's scanned off a brand new physical PRP Summit seat from the manufacturer, so it's not perfectly symmetrical and has the slight tolerance differences any real seat has. For designing seat mounts and placing the seat in your chassis it works great, that's exactly what we use it for daily.
Both, really. The scan gives you the seat geometry to place in your chassis, and we've also dropped in geometry blocks for the seat mounts to make laying out your mount design a lot easier.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The PRP SUMMIT SEAT- Scan CAD File is $30.00.
This PRP SUMMIT SEAT- Scan CAD File is brought to you by Tekk Consulting Inc. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Race Seat Scan CAD Files plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Race Seat Scan CAD Files category, or shoot us an email and we will point you to the right files for your build.
Yeah — DIY Off Road carries downloadable DXF cut files across 3D Scan CAD Files, including Race Seat Scan CAD Files, all designed by working fab shops. Browse the 3D Scan CAD Files section or email us and we will help you track down the right files.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
