Jeep TJ Front and Rear Tube Fender Build Plans (DXF, CNC, CAD)
Jeep TJ Tube Fender Build Files (DXF, CNC, CAD)

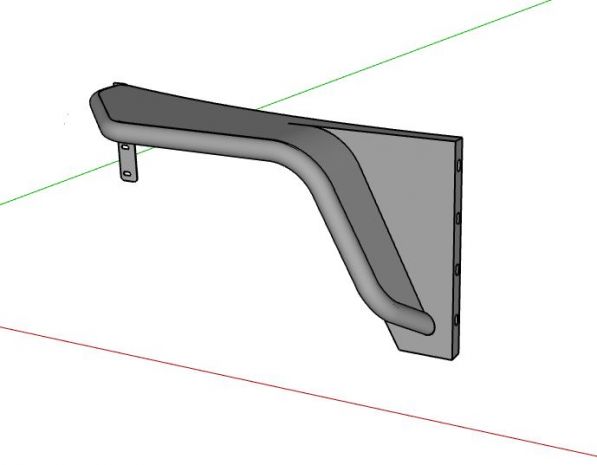

Our Jeep TJ Tube Fender build plans come with both front and rear designs. . This is for the DXF files to duplicate these fenders. Comes with full assembly instructions. Tube bends assume a 1.5" die with a 5.5" radius. Includes designs for 4", 5" and 6" flares.
Details about our build plans
- Originally drawn in either Sketchup or Solidworks
- Each file is saved as the original CAD and a DXF copy is exported
- Will require the following material
- 72" of 1.5" OD . 120 wall Tubing (x4)
- 16g Sheet
- 1/8" Sheet
- Our fold and weld designs allow you to easily bend the panels by hand. It assures ease of assembly by placing each piece where it needs to go. We have found since adopting this type of design that our support questions have dropped dramatically.
- All of these designs have been built several times in house and sold to customers in both DIY and prebuilt forms. Proven designs that fit!
- We provide you with the assembly instructions for each kit. We do suggest always building on the vehicle to ensure proper gapping and fitment.
- All files are easily editable with your choice of CAD programs.
- End product can be resold all we ask is you please do not resell the files. We all have to make a living :-)
If you have an issue with something please let us know! mistakes can happen and if we have something wrong we would love the chance to know about and fix the issue.
Frequently Asked Questions
This set includes both the front and rear tube fender build plans for the TJ, so you're covered front to back in one download. After payment you'll get the DXF files to run on your plasma, laser, or waterjet.
These are designed specifically for the Jeep TJ. If you're running an LJ or something else, shoot us an email and we'll check if there's a file that'll work for your build.
These are DXF cut files meant to be cut and then welded into your build like most tube fender setups. We don't list a specific gauge here, so email us or reach out to the designer (Blackwidowgear) and they can point you in the right direction for material thickness.
These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.
The Jeep TJ Front and Rear Tube Fender Build Plans (DXF, CNC, CAD) is $45.00.
This Jeep TJ Front and Rear Tube Fender Build Plans (DXF, CNC, CAD) is brought to you by Blackwidowgear. Other off-road and race fabrication designers in the DIY Off Road marketplace include All Co Metal Fab, Armada Engineering, Baja Customs, Baker Motorsports, BPforged, Brad Howard Welding and Fabrication, Christopher Reader, CRD, Deuling Design, Dirty BFabwerx, FDFabrication, Izzy Fab, JEH Consulting INC, JRTfab, Master Fab, Mc Will Manufacturing, OffroadCAD-Models and Superioroffroaddesigns. Need a custom part designed? Email us and we will connect you with the right designer.
DIY Off Road has downloadable DXF cut files for Vehicle Specific Components plus a ton of other off-road and race fabrication parts, all drawn up by real fab shops. Browse the Vehicle Specific Components category, or shoot us an email and we will point you to the right files for your build.
Yeah — if you don't have your own CNC plasma, laser, or waterjet, shoot us an email and we'll send over a few shops that can cut (and press/bend) the parts so you can weld them up.
Soon as your payment goes through you get a download link for the DXF cut files. You (or a shop) cut them from steel on a plasma, laser, or waterjet, bend whatever needs it, then weld them into your build. Nothing physical ships.
Yep — these are cut files for DIY and pro fabrication. A lot of the parts are "plasma table friendly" (flat plate, no bends) to make cutting and assembly easier, but you'll need to cut and weld them in yourself, or have a shop handle it.
