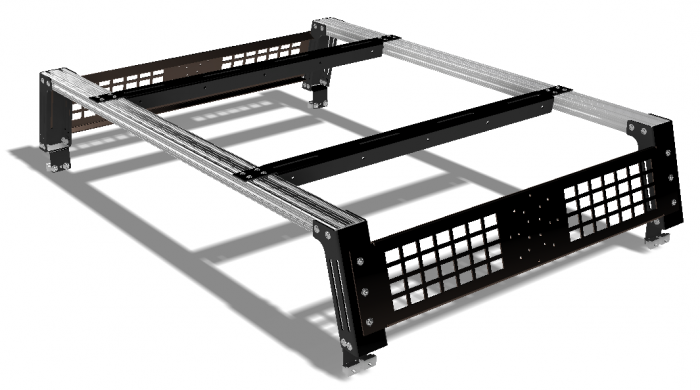

Bed Rack-Toyota Gen - 3 16'-23'

It's a true no-weld build, so you just have the parts cut and bent from the DXF files and assemble it. The download includes the complete cut list, parts list with vendor part numbers, and the DXF files for laser cutting and bending.

It's designed for the Gen-3 16'-23', but it's a universal-style rack and can be used on other generations with some cuts and adjustments to the rails at your discretion. If you want us to check whether it'll work for your specific setup, just shoot us an email.

You get the DXF files for laser cutting and bending, a complete cut list, and a full parts list with vendor part numbers so you know exactly what hardware to source. Once you have the parts cut and bent, you grab the listed vendor parts and bolt it together — no welding needed.

These are digital — soon as your payment goes through you get a download link for the DXF cut files. Nothing physical ships.

The Bed Rack-Toyota Gen - 3 16'-23' is $48.00.
